Home > Catalog > Additional Equipment > Chain Conveyors

CSCC 15 | CSCC 30 | CSCC 30 | CSCC 120 | CSCC 240

Chain
Conveyors

The CSCC series chain flight conveyors are designed
for transportation of various agricultural bulk materials.

DOWNLOAD CATALOG
Chain conveyors CSCC
CSZE 10 | CSZE 20 | CSZE 35

Z-type galvanized chain elevator

Z-type chain elevator is designed for delicate transportation of bulk materials in the vertical and horizontal direction.

DOWNLOAD BUCKLET
Z-образные цепные конвейеры серии CSZE
Key features of CSort bucket elevators
Chain Conveyors

Key features of CSort chain conveyors

All conveyor models can be manufactured with side- loading capabilities and may be fitted with inclined sections, supporting angles of inclination up to 45 degrees.

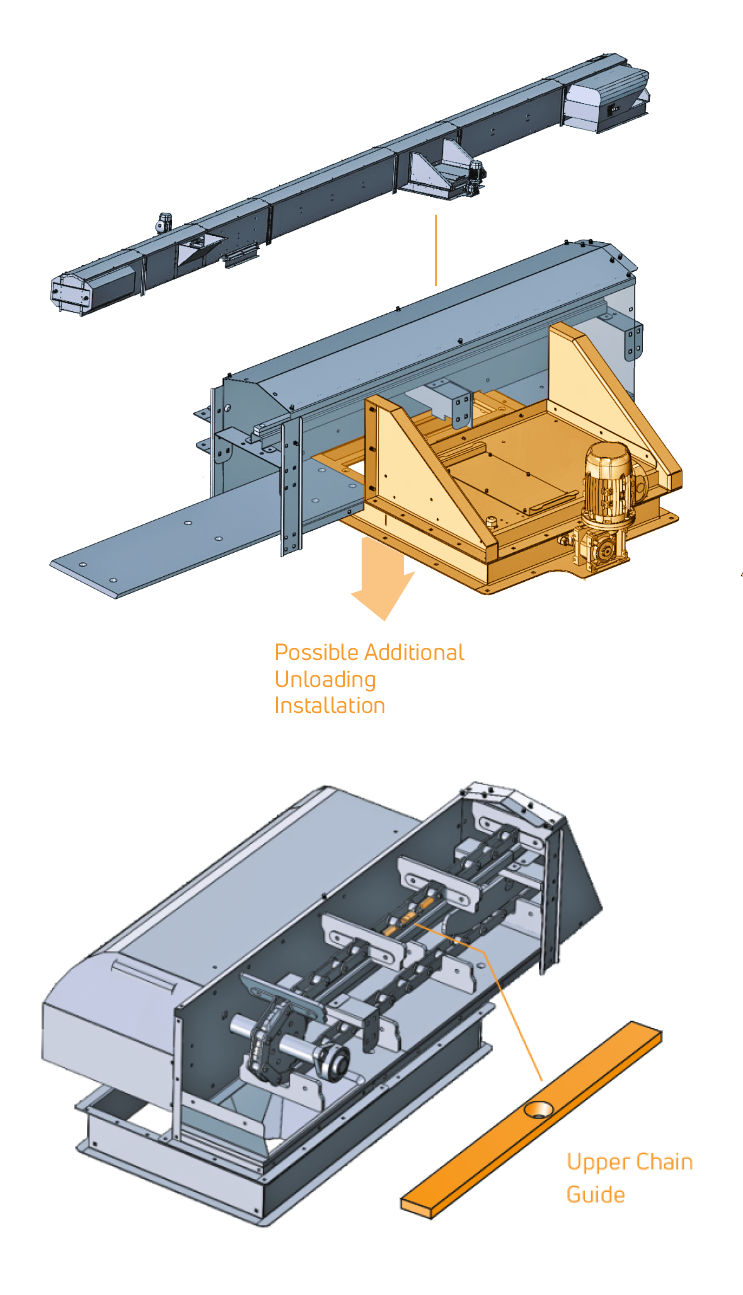

Possible Side Loading Installation
The bottom lining is positioned at the center of each section rather than at the joints, with beveled edges for a seamless connection between segments
Quick and easy equipment cleaning
Service doors allow quick equipment cleaning.
Possibility of installing the chain conveyor up to 30 meters high

Thanks to rigid self-supporting structure and the thickness of the used sheet metal (2 mm), we can install chain elevators up to 30 meters in height without intermediate support.

Ready to install
Modular structure allows equipment assembling without welding, and as a result reduce assembling time and shipping costs

The use of laser equipment in the manufacture ensures accuracy and high quality of assembly.
Certificates
Produced elevators have certificates of conformity, health and safety certificate, permit of the Federal Service for Environmental, Technological and Nuclear Supervision, as well as CE certificates.
Possibility of installation outside the buildings
Possibility of installation outside the buildings
Compliance with safety requirements
Compliance with safety requirements
Minimum power consumption for the given capacity
Minimum power consumption for the given capacity
Modern modular design and a wide range of configurations
Modern modular design and a wide range of configurations
Quick and easy
installation
Quick and easy
installation

Key Features
